Service Manual Excerpts

These are pages scanned in from my 94-95 Mitsu Galant service manual that I thought were important to the swap. I think I looked at one of the pages just once during the entire swap process, but it helps aid in understanding.

21-2 Basic clutch pedal and line information

21-7 Clutch pedal bracket and assembly with master cylinder

21-9 Clutch line path and assembly

21-11 Master cylinder assembly and configuration

22-3 Manual transaxle diagram

22-6 Basic shifter + cables diagram

22-7 Unimportant shifter cable page

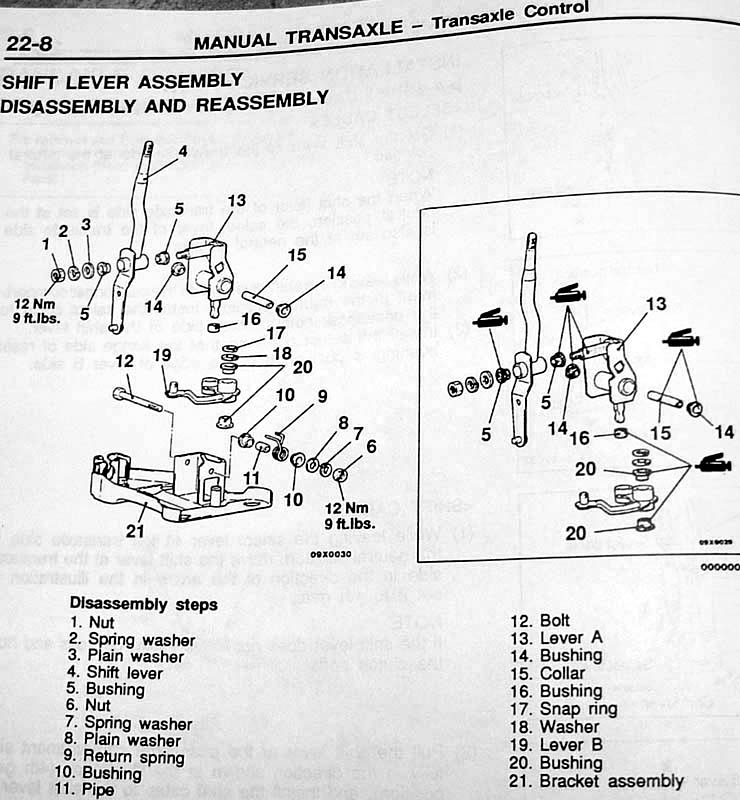

22-8 Shifter assembly

22-9 Basic transaxle removal and installation page

22-10 Basic transaxle removal and installation - lower end
